DIN3017-1 9mm NP W4 Material

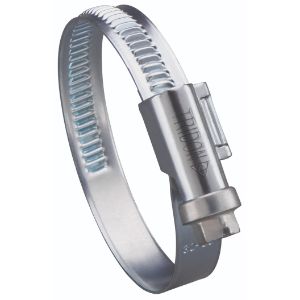

The Tridon NP Hose Clamp offers a compact design and excellent performance. The unique asymmetric housing design provides roll resistance and uniform sealing strength. The non-perforated band and beveled edges keeps soft hoses from shearing or extruding during installation and final torquing. Tridon NP hose clamps meet DIN3017-1.



Chat Now

Material Specifications:

Band Material: 1.4301/304SS
Housing Material: 1.4301/304SS
Screw Material: 1.4310/302SS tin plated
Band Thickness Max: 0.64
Band Width Max (mm): 9
Screw Head Hex Size (mm): 7
Max Recommended Installation Torque (Nm): 3.2
Housing Width Max HW (mm): 14
Housing Height Max HH (mm): 10




Article Number
Clamping Range D
Housing Length Max (mm) (HL)
Band Thickness Max (mm)
Box Qty
573140020256
12-20
26.5
0.64
100
573140022256
12-22
26.5
0.64
100
573140027256
16-27
26.5
0.64
100
573140032256
20-32
26.5
0.64
100
573140035256
23-35
26.5
0.64
100
573140040256
25-40
28.5
0.64
100
573140045256
30-45
28.5
0.64
100
573140050256
32-50
28.5
0.64
100
573140060256
40-60
28.5
0.64
50
573140070256
50-70
28.5
0.64
50
573140080256
60-80
28.5
0.64
50
573140090256
70-90
28.5
0.64
25
573140100256
80-100
28.5
0.64
25
573140110256
90-110
28.5
0.64
25
573140120256
100-120
28.5
0.64
25
573140130256
110-130
28.5
0.64
25
573140140256
120-140
28.5
0.64
25
573140150256
130-150
28.5
0.64
25
573140160256
140-160
28.5
0.64
25
573140170256
150-170
28.5
0.64
25
573140180256
160-180
28.5
0.64
25
573140190056
170-190
28.5
0.64
25
573140200056
180-200
28.5
0.64
25
