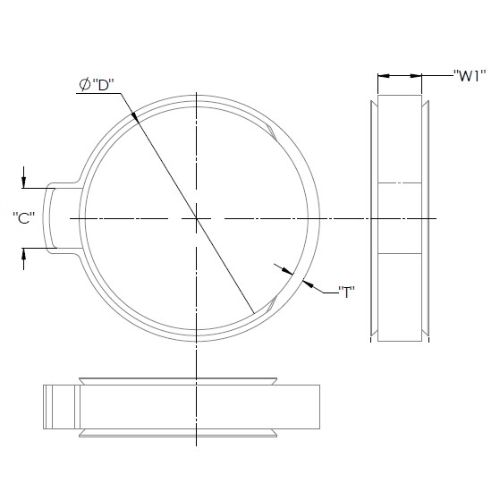

| Article Number | Clamping Range D (mm) | Band Thickness T (mm) | Band Width W1 (mm) | Ear Width C (mm) | Box Qty |
|---|---|---|---|---|---|
| SG09.0 | 7.5 - 8.5 | 0.8 | 6.0 | 5.5 | 1000 |
| SG10.0 | 8.0 - 9.5 | 0.8 | 6.0 | 6.0 | 1000 |
| SG11.0 | 9.0 - 10.5 | 0.8 | 6.5 | 6.5 | 1000 |
| SG12.0 | 10.0 - 11.5 | 0.8 | 6.5 | 7.0 | 500 |
| SG12.8 | 10.5 - 12.5 | 0.9 | 6.5 | 7.5 | 500 |
| SG14.0 | 11.5 - 13.3 | 1.0 | 7.0 | 8.0 | 500 |
| SG16.0 | 13.0 - 15.3 | 1.1 | 7.0 | 8.5 | 500 |
| SG18.0 | 15.0 - 17.3 | 1.1 | 7.0 | 9.5 | 500 |
