Tridon TPC Heavy Duty Clamp W2 Material


Tridon TPC Heavy Duty Clamp W2 Material
Purchase Tridon TPC Heavy Duty Clamp W2 Material

  • Tridon TPC Heavy Duty Clamp W2 Material

  • Tridon heavy duty Bolt and Barrel clamps are designed to handle the most extreme hose applications. Beveled edges and bridge offer protection.



  • Band Material: 1.4301/304SS



See more products like this one:

Tridon TPC Heavy Duty Clamp W2 Material

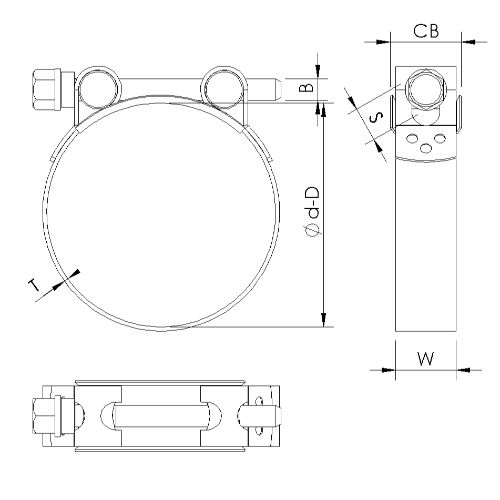

Article Number Clamping Range D (mm) Box Qty Screw Head Hex Size (mm) Channel Bridge Width CB (mm) Band Width W (mm) Band Thickness T (mm) Screw Size S (mm)
TPC00252111 23-25 50 10 19 16 0.8 M6
TPC00272111 25-27 50 10 19 16 0.8 M6
TPC00292111 27-29 50 10 19 16 0.8 M6
TPC00312111 29-31 50 10 19 16 0.8 M6
TPC00342111 31-34 50 10 19 16 0.8 M6
TPC00372111 34-37 50 10 19 16 0.8 M6
TPC00402212 37-40 50 13 25 22 0.8 M8
TPC00432212 40-43 50 13 25 22 0.8 M8
TPC00472212 43-47 50 13 25 22 0.8 M8
TPC00512212 47-51 50 13 25 22 0.8 M8
TPC00552212 51-55 50 13 25 22 0.8 M8
TPC00592212 55-59 50 13 25 22 0.8 M8
TPC00632212 59-63 50 13 25 22 0.8 M8
TPC00682212 63-68 50 13 25 22 0.8 M8
TPC00732232 68-73 25 13 25 22 1.2 M8
TPC00792232 73-79 25 13 25 22 1.2 M8
TPC00852232 79-85 25 13 25 22 1.2 M8
TPC00912232 85-91 25 13 25 22 1.2 M8
TPC00972232 91-97 25 13 25 22 1.2 M8
TPC01042232 97-104 25 13 25 22 1.2 M8
TPC01122232 104-112 25 13 25 22 1.2 M8
TPC01212232 112-121 25 13 25 22 1.2 M8
TPC01302423 121-130 10 17 33 30 1.0 M10
TPC01402423 130-140 10 17 33 30 1.0 M10
TPC01502423 140-150 10 17 33 30 1.0 M10
TPC01622423 150-162 10 17 33 30 1.0 M10
TPC01742423 162-174 10 17 33 30 1.0 M10
TPC01872423 174-187 10 17 33 30 1.0 M10
TPC02002423 187-200 10 17 33 30 1.0 M10
TPC02132423 200-213 10 17 33 30 1.0 M10
TPC02262423 213-226 10 17 33 30 1.0 M10
TPC02392423 226-239 10 17 33 30 1.0 M10
TPC02522423 239-252 10 17 33 30 1.0 M10
